Butt Welder

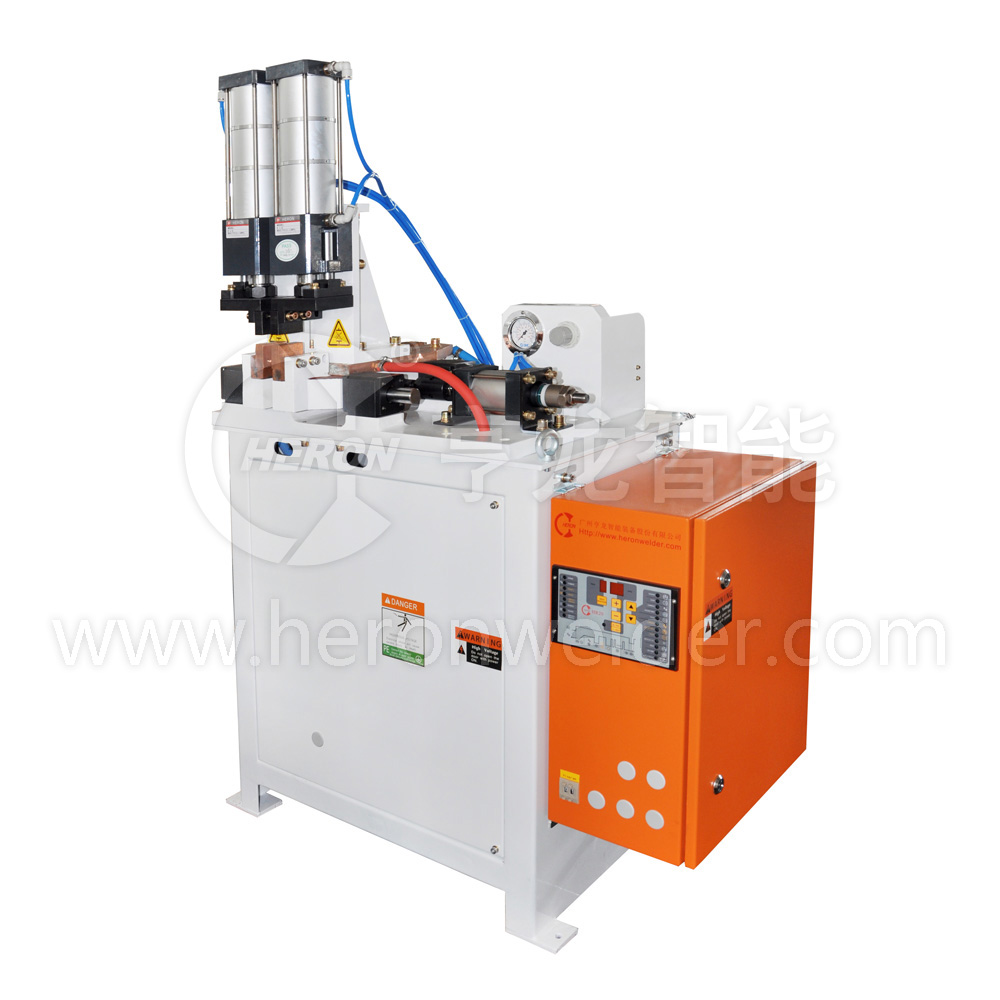

25/35/50KVA Butt Welder With Lever Pressurize

DN-25/35/50-U**1**

Product Features

1. AC, medium frequency or energy storage power sourcecan be used.

2. Control the flash flow through the moving speed of the moving electrode to reach the molten state of the welded section, and then achieve the welding through the moving electrode fast forging after power off.


Basic Parameters

Model #

DN-25-U**1**

DN-35-U**1**

DN-50-U**1**

Rated Capacity

KVA

25

35

50

Power Supply

V/Φ/Hz

380V/1/50Hz

Max. Primary Current

A

47

65

94

Primary Cable

MM2

16

16

25

Max. Short Circuit Current

KA

15.5

19

24

Rated Duty Cycle

%

50

50

50

Secondary Empty Voltage

V

4.2

5.2

6.1

Welding Cylinder Size

Φ*L

*

*

*

Max. Working Pressure

N

*

*

*

Compressed Air Pressure

MPa

0.6～0.7

0.6～0.7

0.6～0.7

Cooling Water Consumption

L/MIN

6

6

8

Compressed Air Consumption

L/time

*

*

Throat Depth

MM

596

596

596

Arm Gap

MM

198

198

198

Electrode Size

MM

Φ31.75

Φ31.75

Φ31.75

Dimensions

H(MM)

1396

1396

1396

L(MM)

1391

1391

1391

W(MM)

637

637

637
